Large Walk in Cold Storage Panel P50 80 100 150 200 for Flexible Storage Solutions

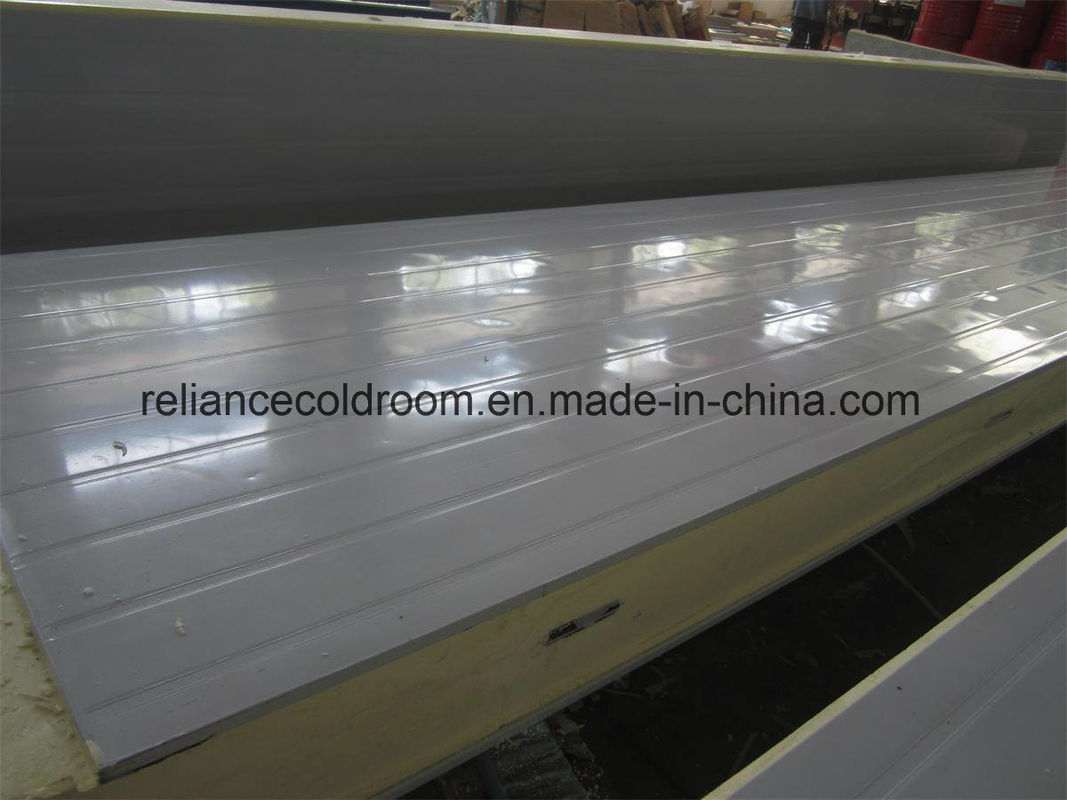

Panel Dimension
Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 295.3mm. The maximum lengths of panels are 6M. Non-standard sizes are also available upon request with price varying.

Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available

Cold Room Structure


Choice of the surface finished

A. Stucco Embossed Aluminium
B. Stainless Steel
C. Painted Galvanized Mild Steel
D. PVC Stell
E. Standard floor panels: 1.0mm galvanized mild steel

Panel thickness and Operating Temperature;

Cold storage temperature: -5C to +10C, panel thickness: 50mm, 75mm, 100mm;

 Freezer storage temperature: -25 to +18C, panel thickness: 150mm, 180mm, 200mm;

Quick frozing temperature: -40C to +18C, panel thickness: 150mm, 180mm, 200mm.

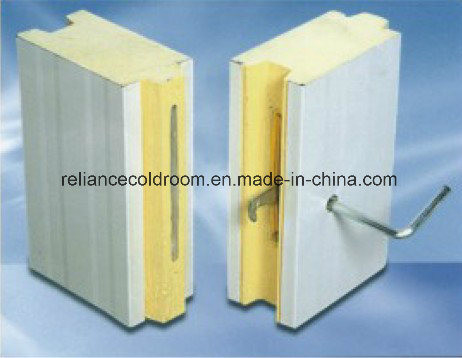

Installation of panels:

Every panels consists of tongue and groove construction and can be tightened by a number of exocentric fasteners, which may be unscrewed easily with a hexagonal key.

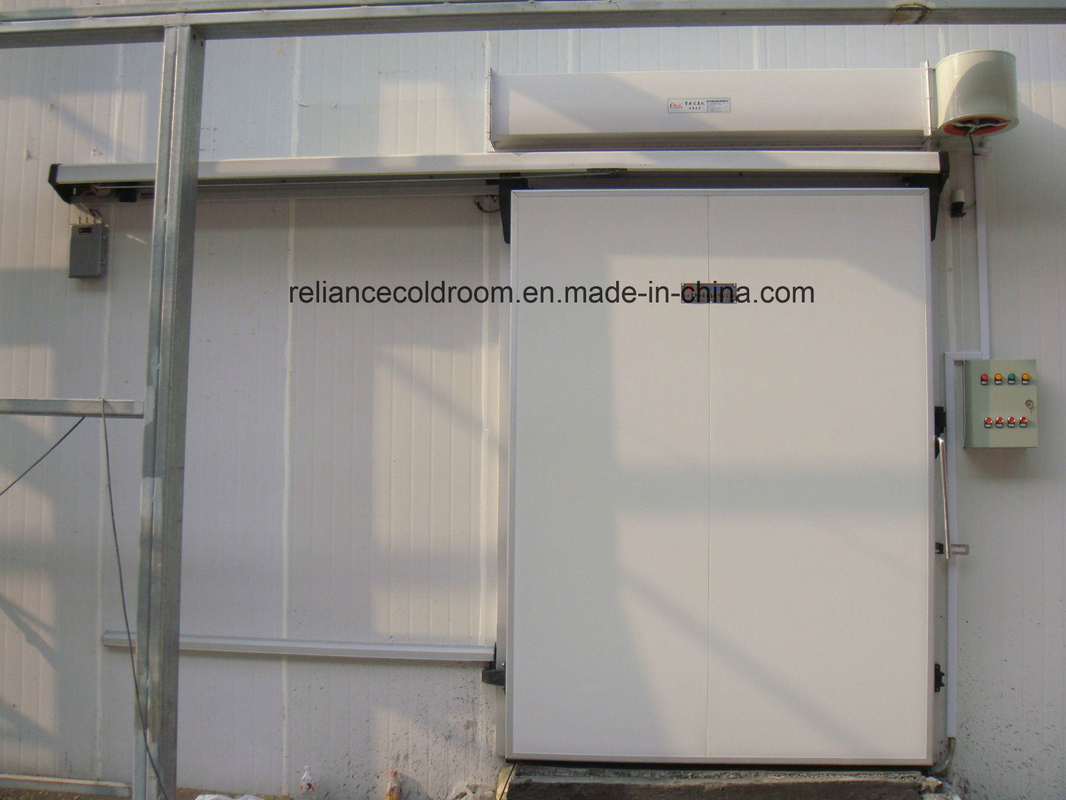

Cold Room Door Type:


Different RoomTempreture:

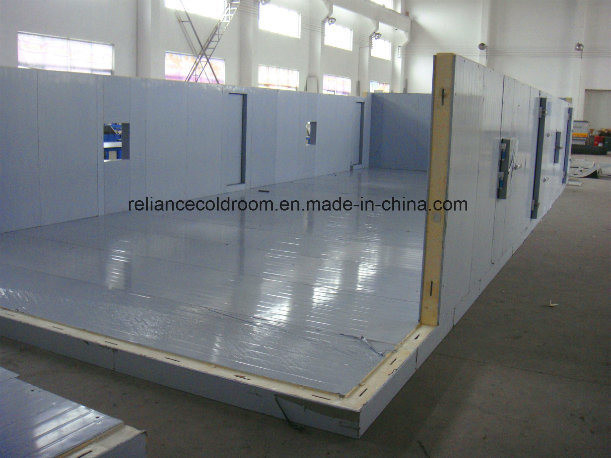

Our Cold Room in Building:


Our Sueccessful Project:

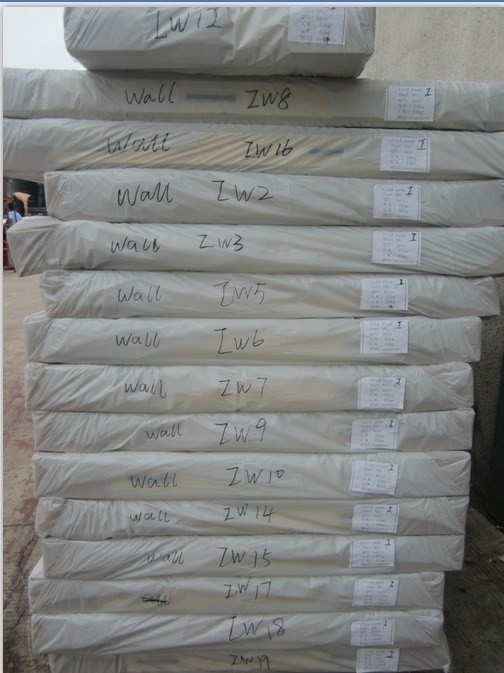

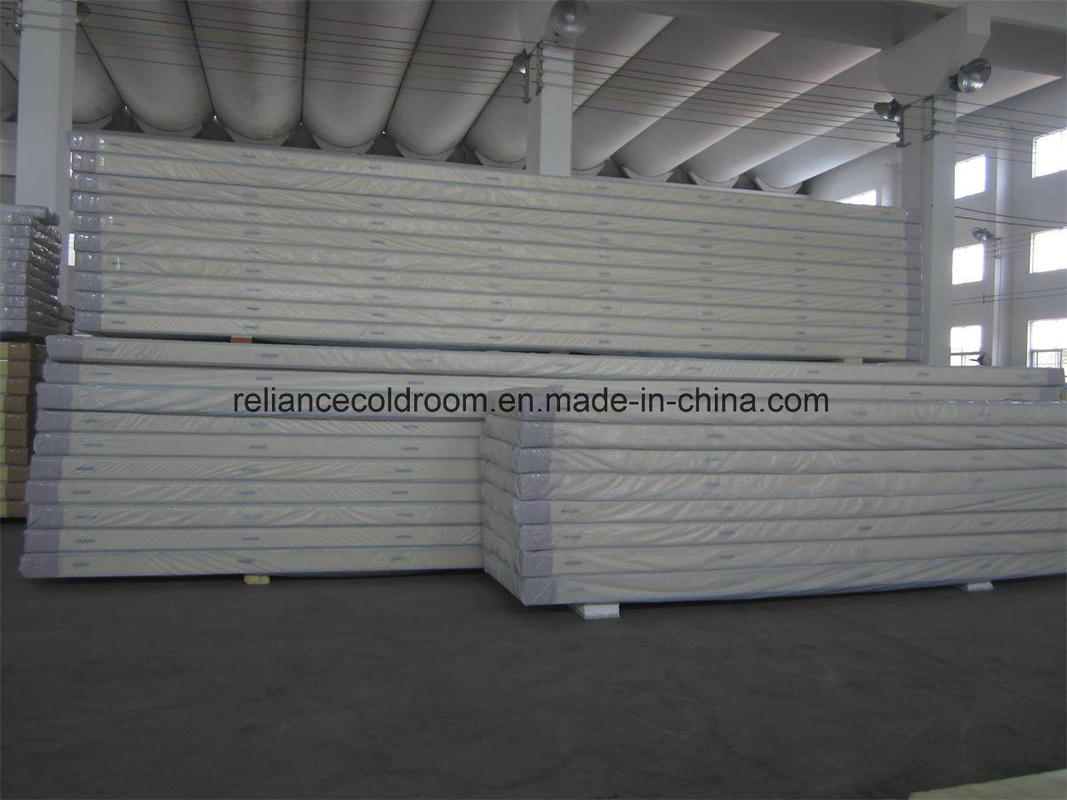

Our shipment:

FAQ

1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Changzhou, Jiangsu  Province.

 2.Q: Can I get guarantee of products?
    A: Yes, every cold room is 10 years quality warrantee under customer correct using the products.

3.Q: Do you have any Certificate?
    A: Yes. we have ISO9001 certificate. If you need any other Certificate, we can help you to get it.

 4.Q: How to buy it? What about the delivery?
    A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.

 5.Q: How can I pay you?
    A: T/T, L/C is very well used.

 6.Q: What about the production?
    A: Produce time is 10 to 15 days.

 7.Q: Could you offer some spare parts?
    A: Yes, no problem.

 8.Q: What about the maintenance?
    A: All the goods past the test, maintenance is very easy.

7.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager: Rita Cui
